SPACE X - SMALL sandblasting tunnel

Movable with forklift

With sloping roof - installation for indoor and/or outdoor use

Basic features:

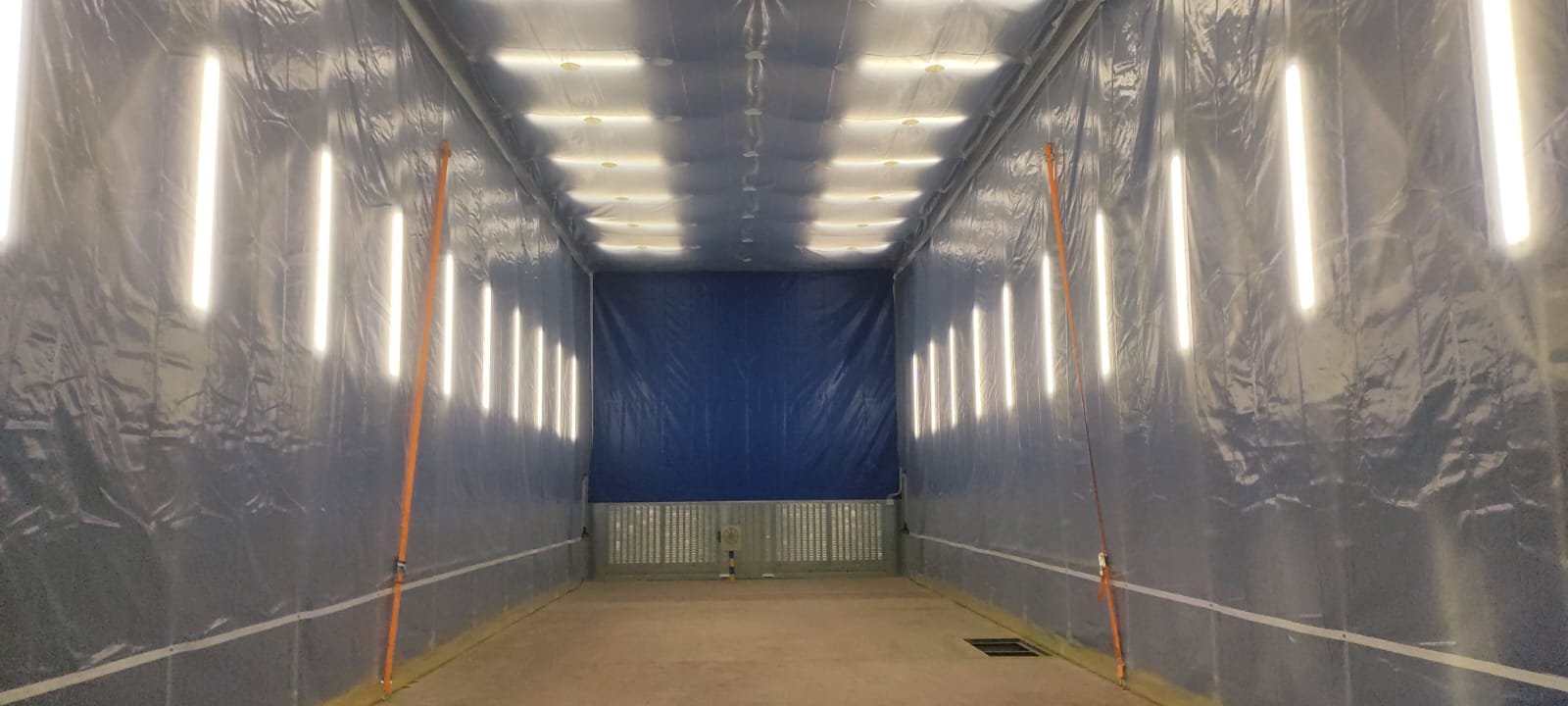

Features: example as in photo

Dim. useful internal: mt 10 (length) x 4 (width) x 2,3H*

Dim. external open: mt 11 (length) x 4,2 (width) x 2,6H*

Dim. external retracted: mt 1.9 (length) x 5 (width) x 2.6H** these dimensions do not include the duct for emissions into the atmosphere

Compactable manually by 2 operators - ASSEMBLED TRANSPORTABLE VERSION, MOVEABLE WITH FORKLIFT

Complete with:

• extensible/retractable containmentstructure built in galvanized tubular arches, connected to each other with pantographs, sliding on PVC wheels
• cover custom designed in double coated PVC tarpaulin, self-extinguishing cl.2
• front meshes for air intake complete with perimeter Velcro for the application of prefilterG3 prefilter on the front doors (supplied separately)
• front doors in 2 pieces with central velcro closure, with reinforcement rods with pressure latchinternal tensioners (belts with jack)
• Filtration unit for sandblasting dust purification complete with:
• front suction wall in perforated metalfiltration through series of pleated polyester cartridges; efficiency class "M"
• reverse flow pneumatic self-cleaning system during and after application dust recovery
• drawers on the lower part of the module
• control panel positioned outside
• compressed air quick coupling for sandblaster (not supplied)

Nominal air flow 10,000 m3/h (for this example version)

Available also with

cover to protect the structure

Exquipped with Lighting system with long-lasting neon (IP65) - white light, lamps positioned on each arch on the upper side

Filtered air evacuation with expulsion hose

Unique Benefits:

Benefits/Added Value:

• extensible/retractable containment (space saved approx. 75%)
• correct ventilation for sandblasting healthy environment for the operator and excellent visibility integrated effective suction and filtration for even very fine DUSTS
• possibility of relocating the system to another location by means of a forklift

Handling:

• extension/retraction on wheels (manual)
• by forklift truck
